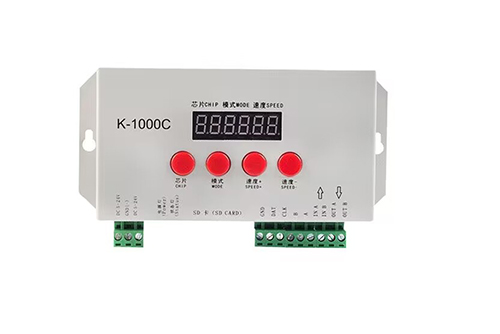

What is the K-1000C LED pixel controller?

The K-1000C LED pixel controller is a high-performance LED controller designed for managing and controlling large-scale LED lighting systems with precision and flexibility. Below is a detailed overview of its key features and capabilities:

K-1000C LED pixel controller Functions

• Pixel Control:
  Supports up to 2048 pixels (e.g., WS2812B, WS2811, APA102, SK6812, etc.), enabling complex lighting designs for stages, buildings, and decorative displays.
  Compatible with DMX512 protocols, allowing integration with professional lighting consoles (supports up to 512 DMX channels).
• Offline Programming:
  Uses an SD card (256MB–32GB, FAT/FAT32 format) to store and play back lighting effects without requiring a constant PC connection.
  Can save up to 32 effect files on the SD card, with adjustable frame rates (e.g., 30fps for ≤512 pixels, 15fps for 2048 pixels).
• Multi-Controller Synchronization:
  Supports cascading multiple controllers (up to 150 meters apart) via optical isolation for stable, synchronized performance across large installations.
  Each controller can operate independently or in unison, ideal for unified lighting effects over vast areas.

Technical Specifications

• Voltage: DC 5–24V (wide compatibility with various LED strips and modules).
• Grayscale Control: 32–65,536 levels with gamma correction for smooth color transitions and high-fidelity effects.
• Transmission Distance: 50–100 meters (standard); up to 150 meters with high-quality cables in cascade mode.
• IC Support: Compatible with over 20 IC types, including WS28xx, SK6812, LPD6803, and DMX512 variants.
• Material: Metal casing for durability and efficient heat dissipation.
• Certifications: ISO9001, RoHS, FCC, CE, TUV, UL, ensuring safety and compliance with global standards.

Key Features

• Flexible IC Selection:
  Users can manually select supported ICs via a physical button on the controller, eliminating the need for software locking. This simplifies setup for mixed IC installations.
• DMX Address Writing:
  Built-in function to assign DMX addresses directly, streamlining integration with professional lighting systems.

• Robust Design:
  Optical isolation in cascade mode minimizes signal interference, ensuring stable performance in large-scale setups.
  Pure copper power cables (0.5mm²) are recommended for long-distance cascading to reduce voltage drop.

• Software Support:
  Works with LedEdit-K V3.26 or later, enabling one-click address writing and advanced effect programming.

Applications of K-1000C LED pixel controller

• Commercial Lighting: Facades, billboards, and architectural accents.
• Entertainment: Stages, concerts, and themed environments.
• Decorative Displays: Holiday lighting, art installations, and interactive exhibits.
• Industrial Use: Signage, safety lighting, and large-scale monitoring systems.
